Back due to popular demand after last week's deep dive into the non-planar and rotation view, this week we will be highlighting two more views in VGSTUDIO MAX: custom path and profile window!

As the name suggests, the custom path view allows us to tailor our view to our heart's desire. It is ideal for unrolling shapes that are not quite so geometric, like tubes. All we need to do is set the reference, which can be a geometry element or instrument—like a polyline.

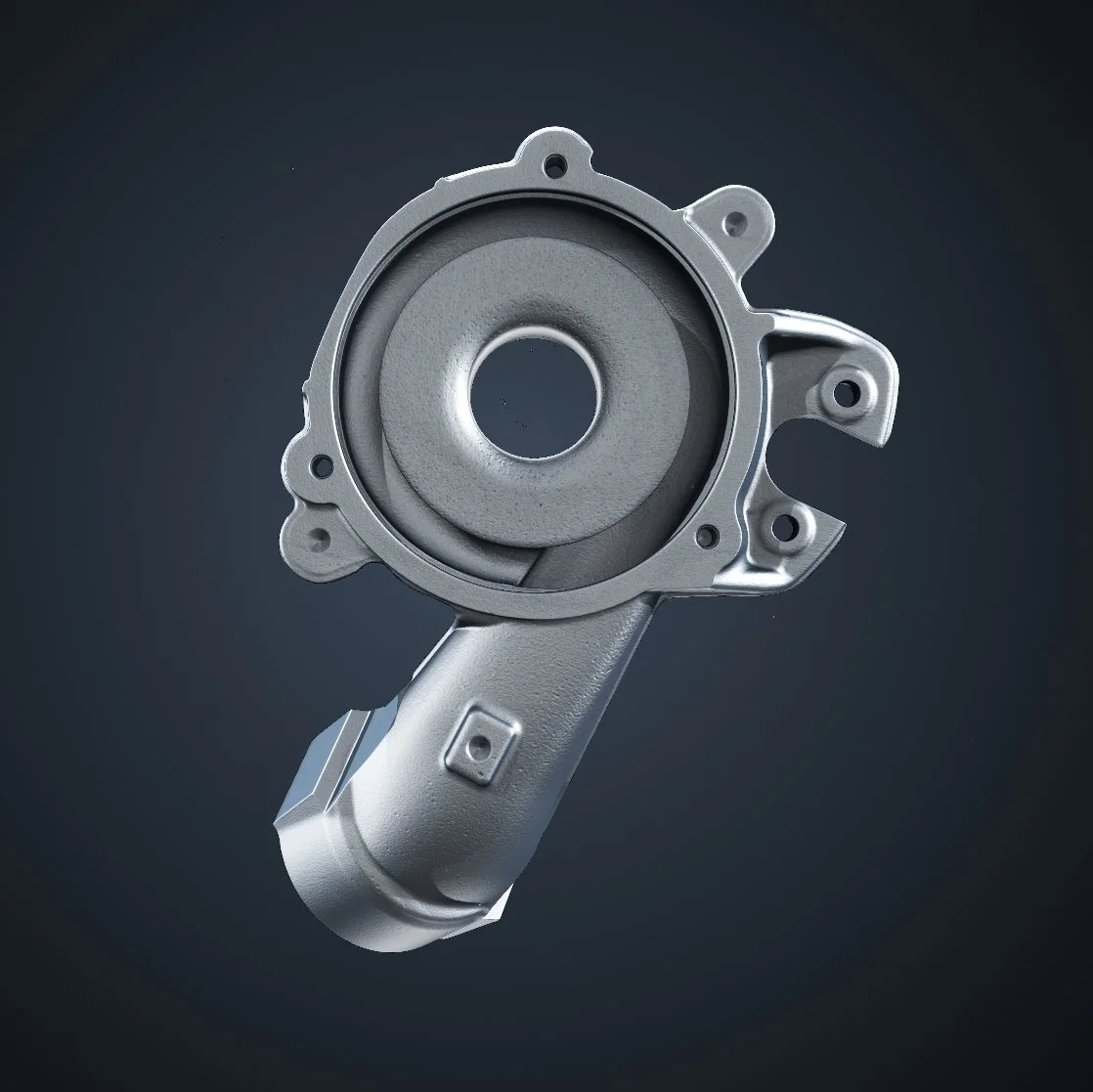

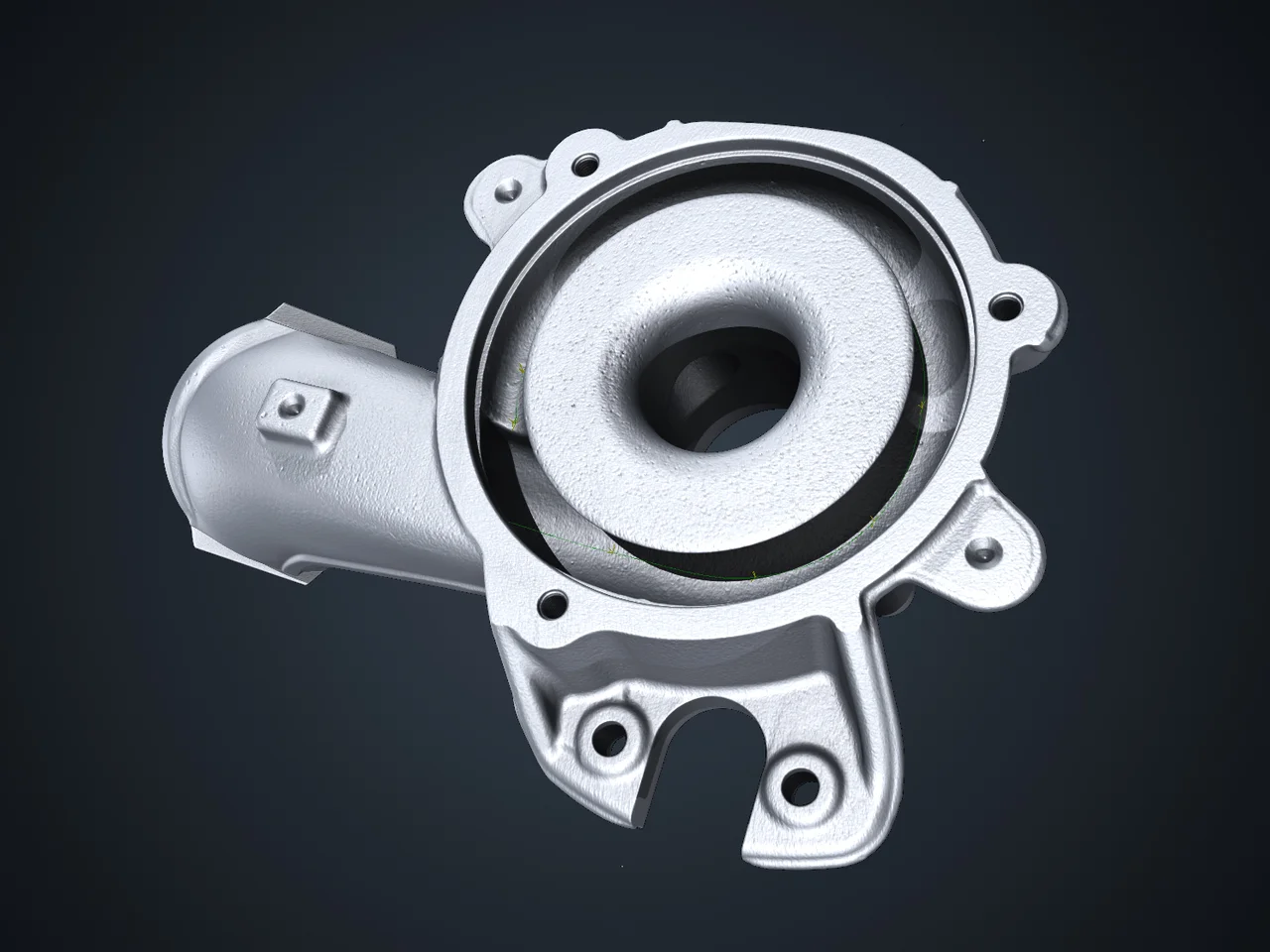

Let's take a turbocharger, which is very conveniently shaped for our purposes. Before we begin, a few words on its shape and structure.

A turbocharger is a turbine-driven device that increases the power output of an internal combustion engine by forcing extra compressed air into the combustion chamber. The central housing swirls into a snail-like shape while the tube narrows as it moves inward. This pushes extra air into the chamber.

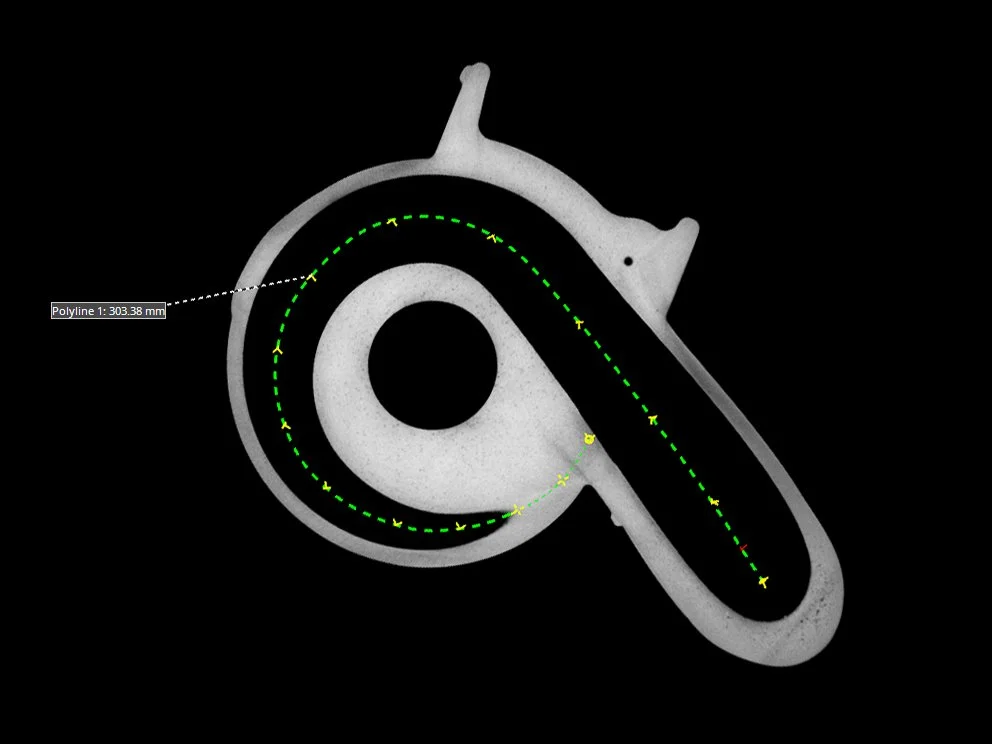

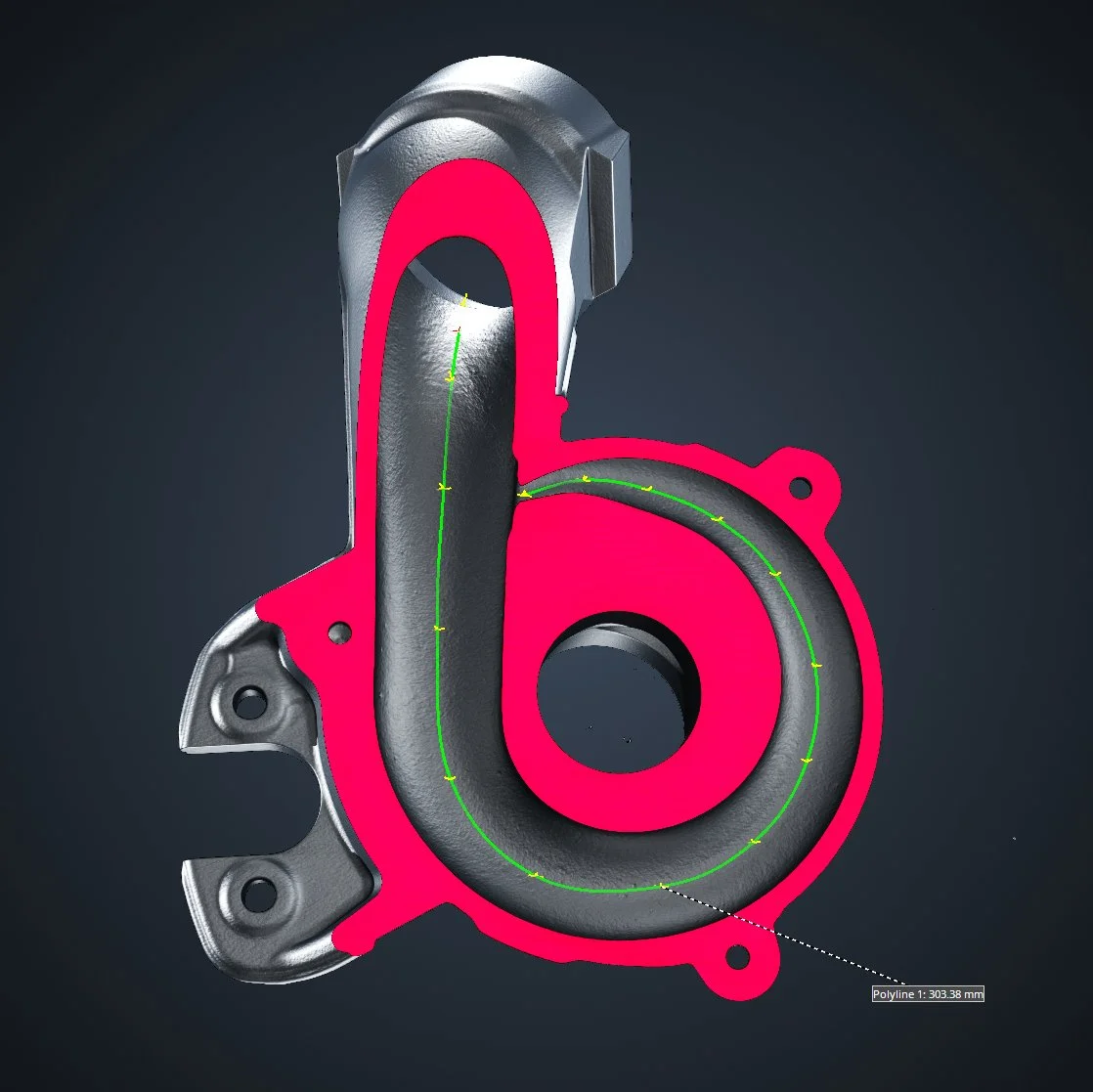

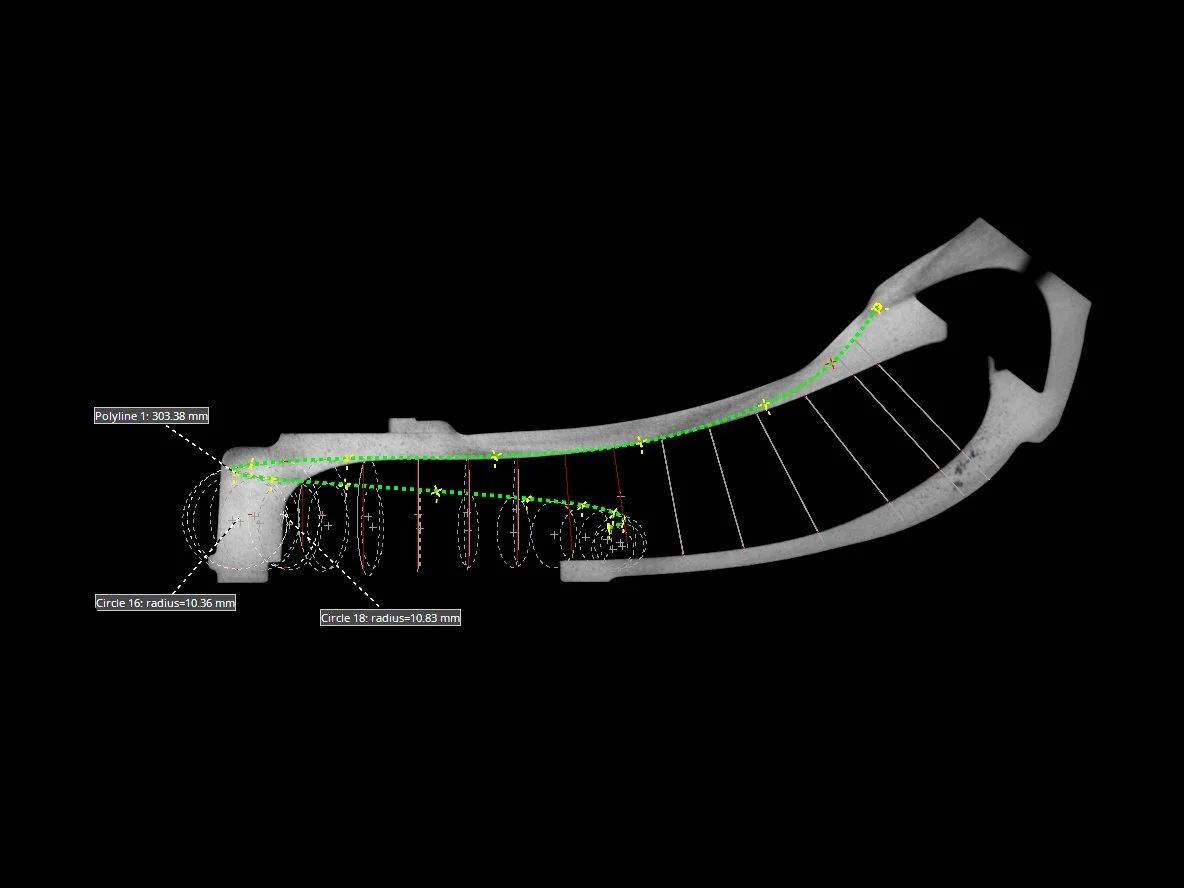

Here is a 2D view of our polyline.

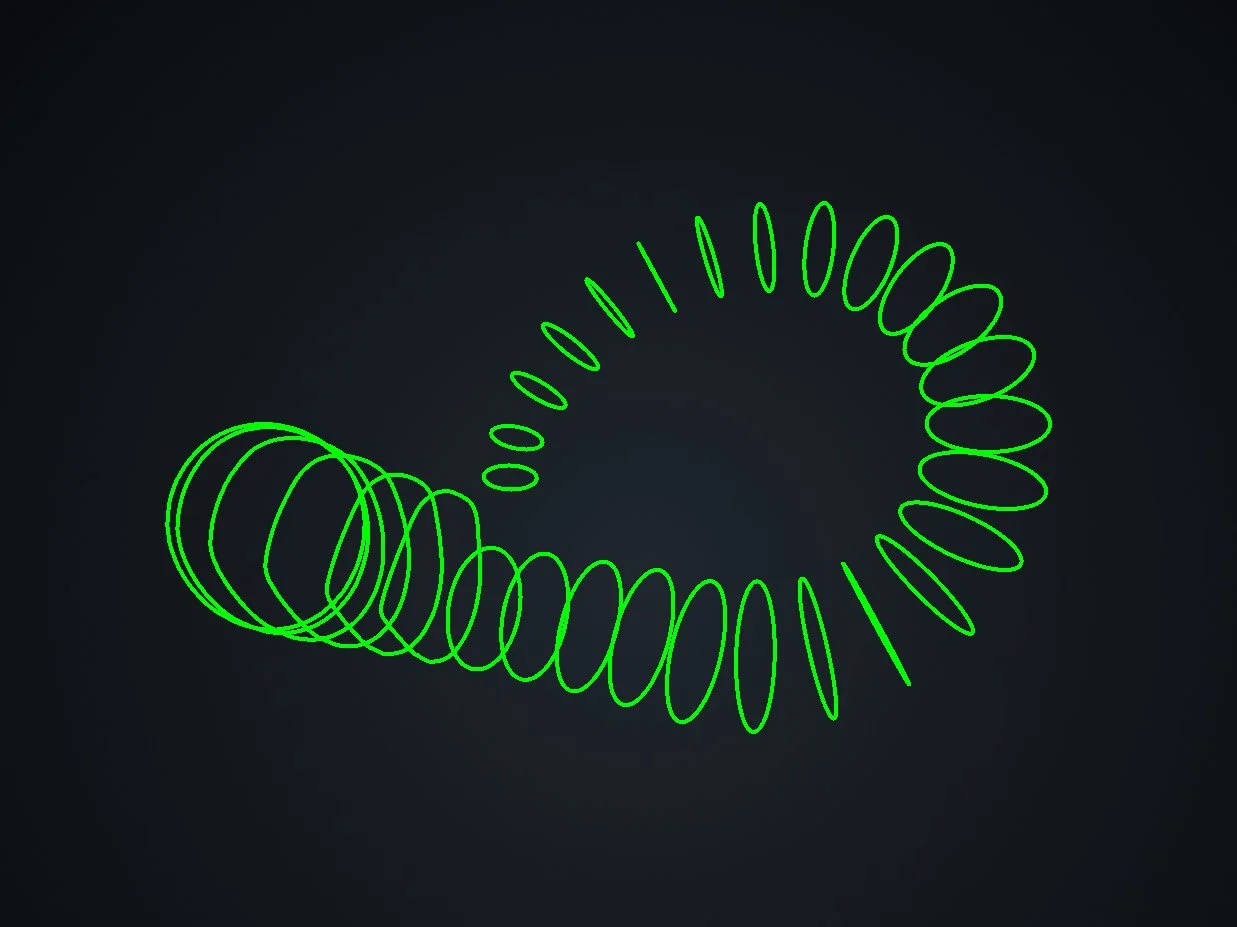

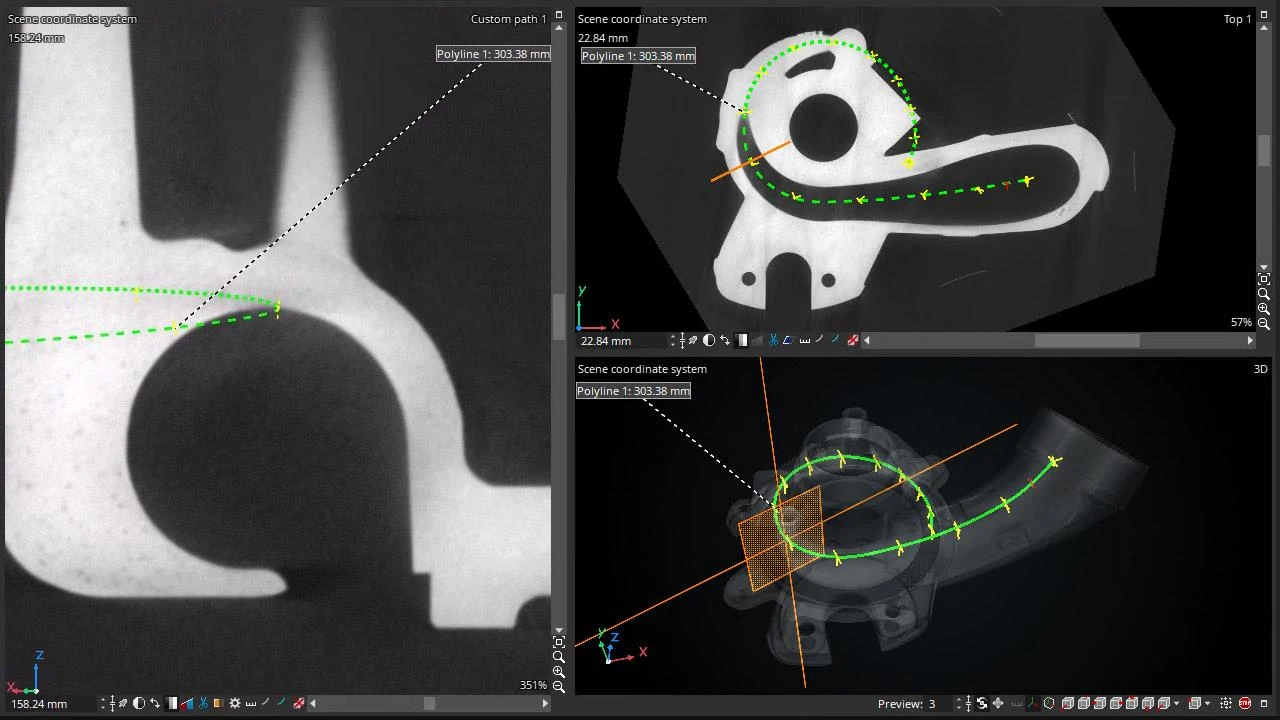

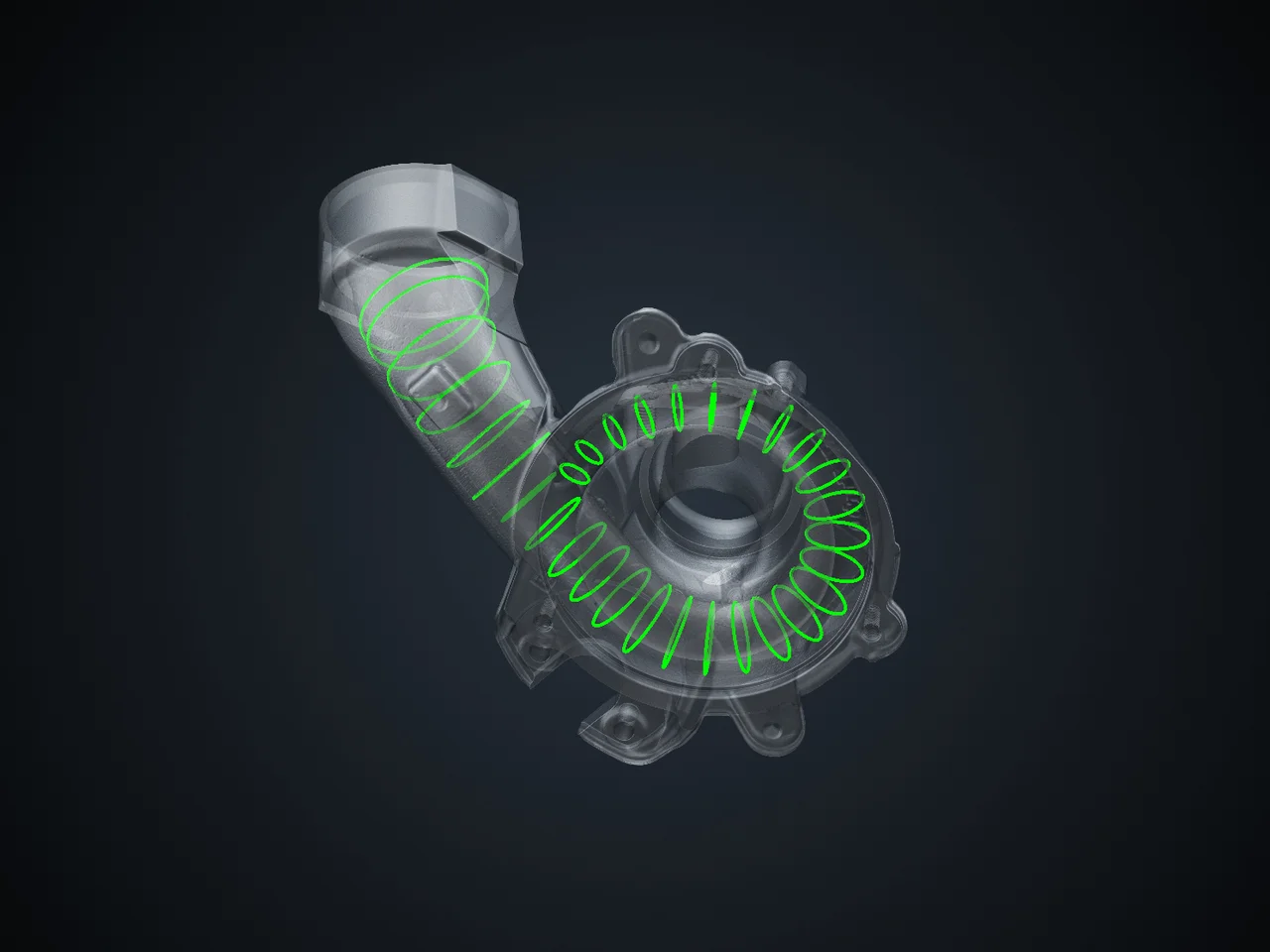

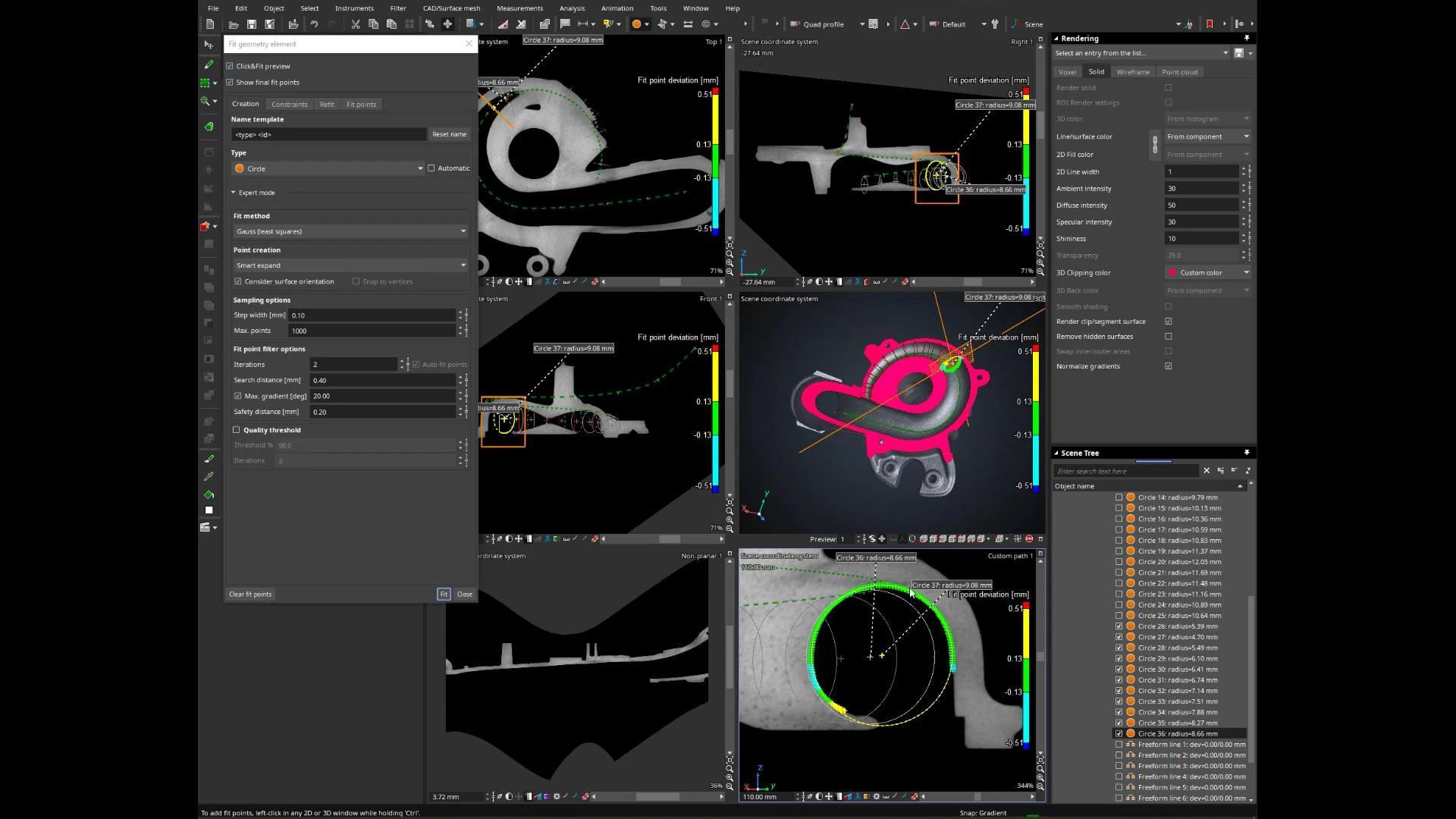

Based on this reference path, we can fit circles at different positions of the snail canal to create cross sections.

From there, we can import the cross sections into a CAD software for reverse engineering.

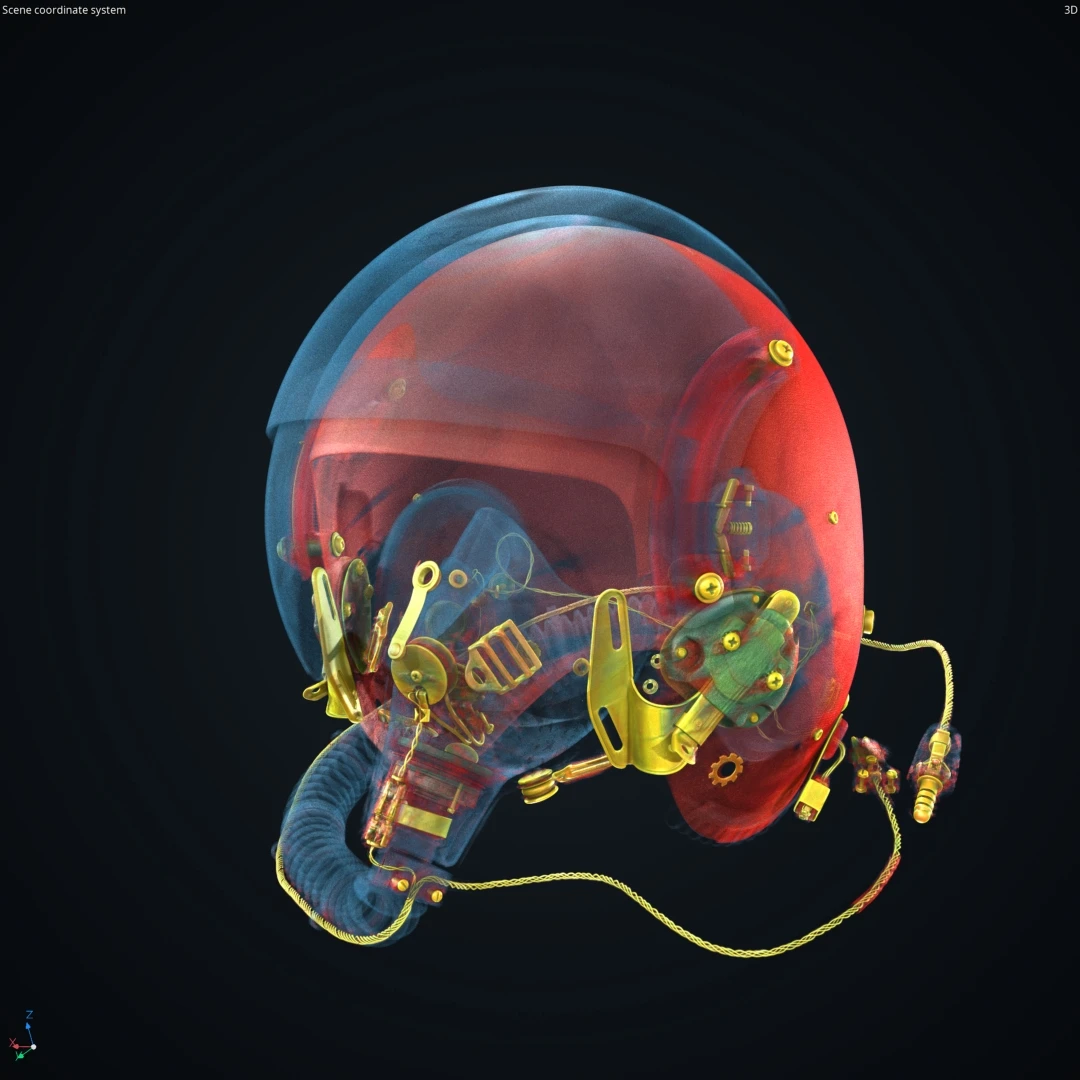

We can try this out on a lot of things, such as this nifty pilot's helmet.

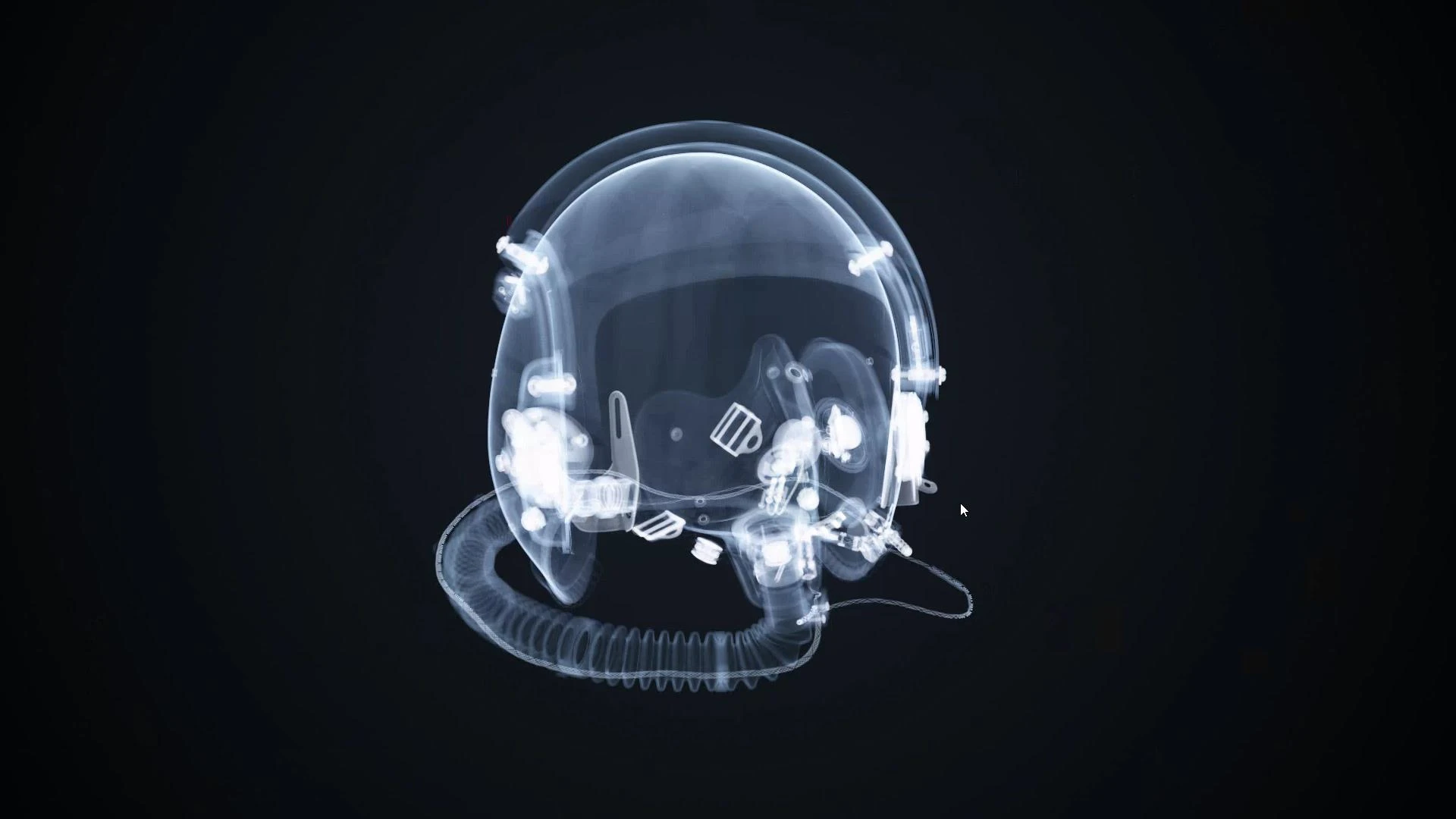

That breathing tube looks mighty tempting, but if you look closely, you can see a cable inside the breathing tube. Let's aim for that.

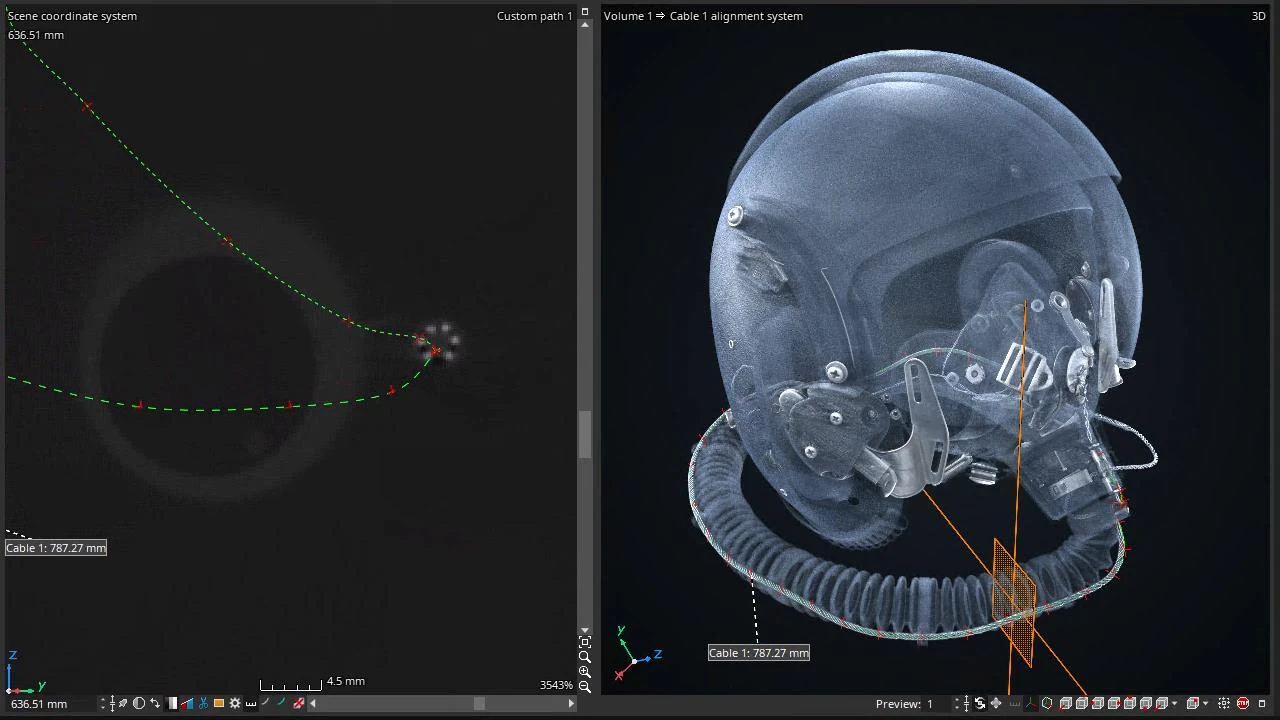

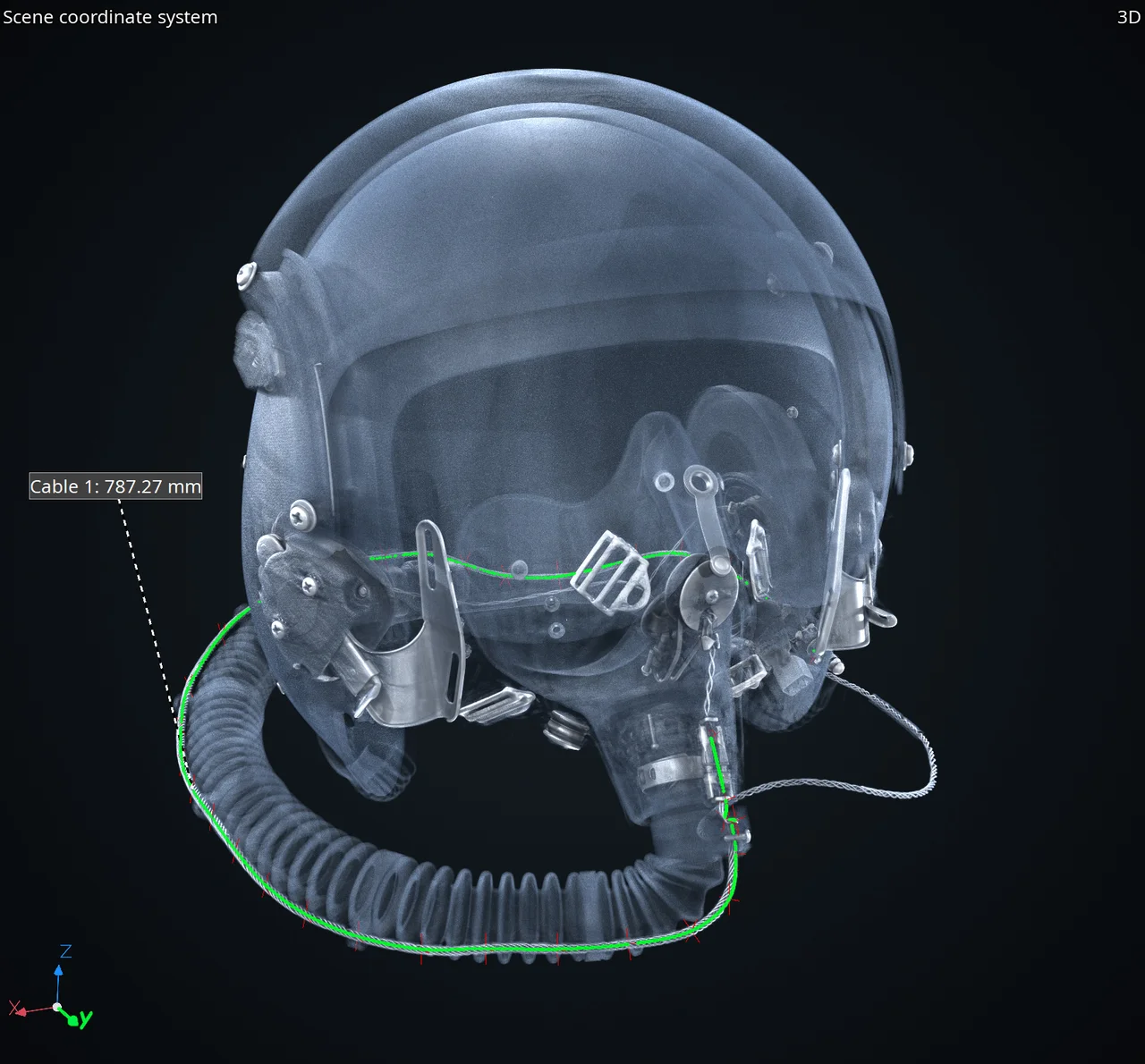

As with the turbocharger, we can set a polyline across the cable.

Watch the cable dance! It feels a bit like a roller coaster, so move along the path and enjoy the ride! We can even loop the path when we're done.

As a small reward, we can treat ourselves to a bit of color here.

Now let's switch gears completely and talk about gray value profiles.

The profile window can either be accessed through the quad profile or created in the layout editor. It allows us to gain insight into the gray values along a line. This picks up on key differences we often miss, as our eyes automatically adjust our perception of light and contrast based on a variety of factors, such surrounding color and objects.

Don't believe us? Just look at the checker shadow illusion!

The gray value profile allows us to work more with numbers instead of visuals—in case our eyes really are deceiving us!

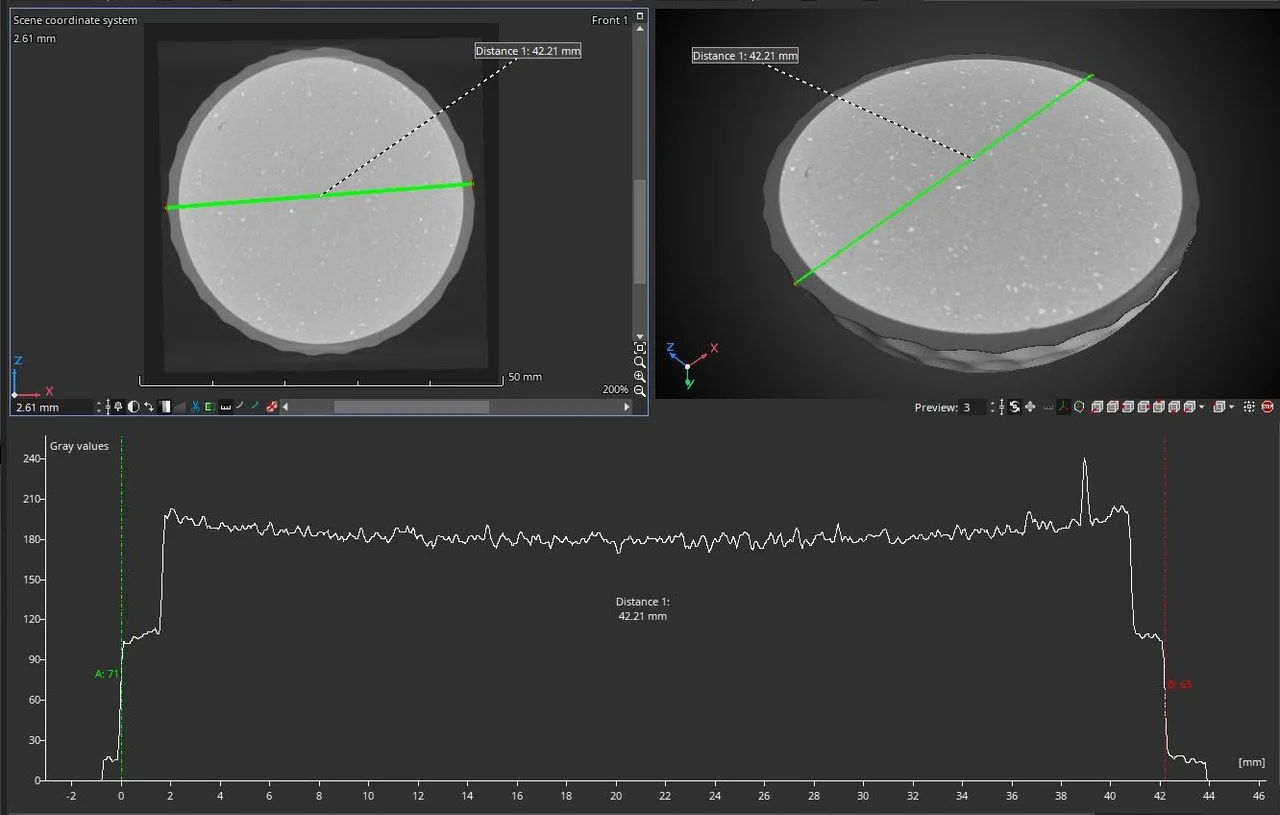

We can simply use the distance tool to set a line in one of the 2D views. The profile window shows a graph of gray values along that line.

Let's try this out on something quick and simple: a golf ball.

In this case, our eyes tell us that everything looks pretty good. However, if we look at the gray values, we can see a slight cupping effect caused by beam hardening. The outer edges of the core material are brighter (or rather, have higher gray values) than the center, which likely means that the scan or reconstruction was not done optimally.

Of course, not all profiles will look like this. Sometimes, artifacts in a data set—such as beam hardening—will cause more obvious distortions. Regardless of whether we can spot them, the profile window allows us to quantify these distortions.
